How to preview Pages

Stack9 Pages does not draw its own approximation of your site. It renders each Slice by posting the editor's data into your actual renderer, so the editor promises exactly what the published site delivers. The same mechanism backs a shareable, tokenised snapshot link for reviewers who never open the CMS.

What you'll build

Both preview surfaces, end to end:

1. A /slice-preview route in your consumer web app that renders Slices from posted data
2. A /preview/{token} route that renders a whole saved snapshot
3. A configured Preview Domain on the Pages project
4. Live preview working in the editor, tracking unsaved edits
5. A shareable snapshot link an editor can send to a reviewer

Time to complete: 60-90 minutes (mostly consumer-app work)

Prerequisites

• A Pages project with at least one document and one Slice
• Access to the consumer web app that renders your site, and the ability to deploy a route to it
• A DXP API key (X-API-Key) for the configuration calls
• Familiarity with the Slice vocabulary: Slice, Layout, Wrapper, Block, and Column (Zone)

How it works

The CMS is not the canonical renderer — your consumer app is. This is the render side of the Slice Rendering Contract.

   Pages editor (CMS)                  Your consumer app
 ┌────────────────────┐            ┌────────────────────────┐
 │  document editor   │  iframe →  │  /slice-preview        │
 │  live form values  │            │  renders one Slice     │
 │                    │ ← READY    │  or a whole Slice list │
 └────────────────────┘  postMessage└────────────────────────┘

 ┌────────────────────┐            ┌────────────────────────┐
 │  Preview page btn  │  token →   │  /preview/{token}      │
 │  saves a snapshot  │            │  fetches + renders it  │
 └────────────────────┘            └────────────────────────┘

Two surfaces, one renderer:

Surface	Where it renders	Who sees it	Data source
Live preview	An iframe inside the editor, loading {previewDomain}/slice-preview	The editor, live, including unsaved edits	postMessage from the CMS
Preview snapshot	A new tab at {previewDomain}/preview/{token}	Anyone with the link	The snapshot the CMS persisted

Step 1: Implement the /slice-preview route

Add a route to your consumer app that mounts your normal Slice renderer and waits for data over postMessage.

The message contract

Messages the CMS sends to your route:

Message	Payload	When
SLICE_DATA	sliceType, variation, primary, items, sliceId, columns, wrapper, useMock	A single Slice's data changed (debounced ~150 ms)
SLICE_LIST	An ordered list of Slice payloads	Whole-page preview, one module graph instead of one iframe per Slice
THEME_VARS	vars, darkMode	Theme tokens changed (debounced ~200 ms)
INSPECT_MODE	Enable or disable element inspection	The editor enters point-and-edit
HIGHLIGHT_TOKENS	Tokens to highlight	Theme token diffing

Messages your route sends back:

Message	Payload	Meaning
READY	availableSliceTypes	The renderer booted and here is what it can render. Send this or the preview never activates.
RESIZE	Content height	Lets the CMS size the frame to the content
ERROR	Error detail	Render failed; the CMS surfaces it to the editor
FOCUS_FIELD	Field path	The user clicked a rendered element; focus that field in the editor
ELEMENT_SELECTED	Element identity	Inspect mode selection
INSPECT_EXIT	—	The user left inspect mode
WHEEL	Scroll delta	Forwards scrolling to the host page

A minimal implementation

// app/slice-preview/page.tsx (consumer web app)
import { useEffect, useState } from 'react';
import { SliceZone } from '../components/SliceZone';

// Only trust messages from your CMS origin.
const CMS_ORIGIN = process.env.NEXT_PUBLIC_CMS_ORIGIN;

const AVAILABLE_SLICE_TYPES = ['hero', 'feature_grid', 'cta_split', 'rich_text'];

export default function SlicePreview() {
  const [slices, setSlices] = useState([]);
  const [themeVars, setThemeVars] = useState({});
  const [darkMode, setDarkMode] = useState(false);

  useEffect(() => {
    function onMessage(event) {
      if (CMS_ORIGIN && event.origin !== CMS_ORIGIN) return;

      const { type, payload } = event.data ?? {};

      switch (type) {
        case 'SLICE_DATA':
          setSlices([payload]);
          break;
        case 'SLICE_LIST':
          setSlices(payload.slices);
          break;
        case 'THEME_VARS':
          setThemeVars(payload.vars);
          setDarkMode(Boolean(payload.darkMode));
          break;
        default:
          break;
      }
    }

    window.addEventListener('message', onMessage);

    // Announce readiness and declare what this renderer supports.
    window.parent.postMessage(
      { type: 'READY', payload: { availableSliceTypes: AVAILABLE_SLICE_TYPES } },
      CMS_ORIGIN ?? '*',
    );

    return () => window.removeEventListener('message', onMessage);
  }, []);

  // Report height so the CMS can size the frame to the content.
  useEffect(() => {
    const observer = new ResizeObserver(() => {
      window.parent.postMessage(
        { type: 'RESIZE', payload: { height: document.body.scrollHeight } },
        CMS_ORIGIN ?? '*',
      );
    });
    observer.observe(document.body);
    return () => observer.disconnect();
  }, []);

  return (
    <div style={themeVars} data-theme={darkMode ? 'dark' : 'light'}>
      <SliceZone slices={slices} />
    </div>
  );
}

Three details that decide whether this works:

• Send READY. The CMS waits about 5 seconds for it before falling back to a static screenshot. Sidebar thumbnails allow longer (about 30 seconds) before reverting.
• Report availableSliceTypes accurately. The editor reads this to know which Slices it can preview live. Omitting a type is safer than claiming one you cannot render.
• Wrap errors. A Slice that throws should post ERROR rather than blanking the frame, so the editor sees a diagnosable message instead of an empty box.

Validate the message origin

The preview frame runs with scripts enabled and same-origin access to its own document. Check event.origin against your CMS origin before acting on any message, and pass a specific target origin rather than * when posting back. Without that check, any page that can load your /slice-preview route can drive your renderer.

Step 2: Implement the /preview/{token} route

The snapshot route takes the token from the URL, fetches the stored editor state, and renders it with the same components:

curl -X GET 'https://apis.app.stack9.co/api/pages/preview/9f3c1a7e-2b40-4c8d-8f11-6a2e5d9c0b73' \
  -H 'X-API-Key: your-api-key-here'

{
  "token": "9f3c1a7e-2b40-4c8d-8f11-6a2e5d9c0b73",
  "project_id": "proj_7742",
  "document_id": "doc_5512",
  "document_model_id": "landing_page",
  "uid": "spring-campaign",
  "snapshot": "{\"formValues\":{...},\"slices\":[...]}",
  "created_at": "2026-01-01T09:12:44.000Z",
  "updated_at": null
}

snapshot is an opaque serialised string of the editor state — parse it in your app and feed it to the same Slice renderer your published pages use. Do not reshape it on the way through; treating it as opaque is what lets new editorial fields appear without breaking the round trip.

Snapshot links are unlisted, not access-controlled

Anyone holding a snapshot token can view that unpublished content. Treat the link as a secret: keep these routes out of your sitemap, send X-Robots-Tag: noindex, and avoid pasting tokens into public tickets or chat channels. If your content is commercially sensitive before launch, put your own authentication in front of the /preview/* route rather than relying on the token's obscurity.

Step 3: Set the Preview Domain

The CMS needs to know which origin hosts your renderer. Set it once per Pages project.

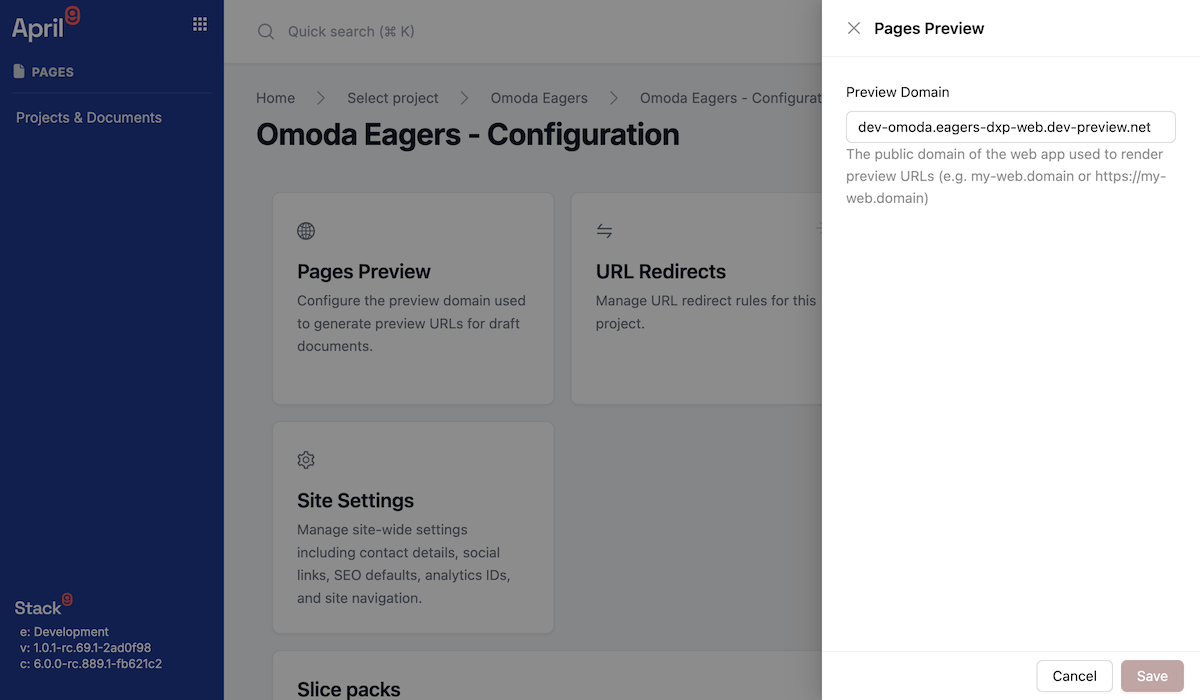

In the editor, open the preview configuration and enter the domain:

It is stored on the project's metadata as the preview configuration domain, and you can set it over the API:

curl -X PUT 'https://apis.app.stack9.co/api/pages/project_metadata/proj_7742' \
  -H 'X-API-Key: your-api-key-here' \
  -H 'Content-Type: application/json' \
  -d '{
    "name": "Northside Motors Website",
    "preview_config": { "domain": "https://www.northside.example.com" }
  }'

The CMS probes reachability before loading anything, so a wrong or unreachable domain degrades to static screenshots rather than hanging the editor.

Use a stable, deployed environment — a staging domain that always runs the current renderer is the right choice. Pointing this at a developer's laptop works for development but produces confusing "preview unavailable" states for everyone else.

Step 4: Use live preview in the editor

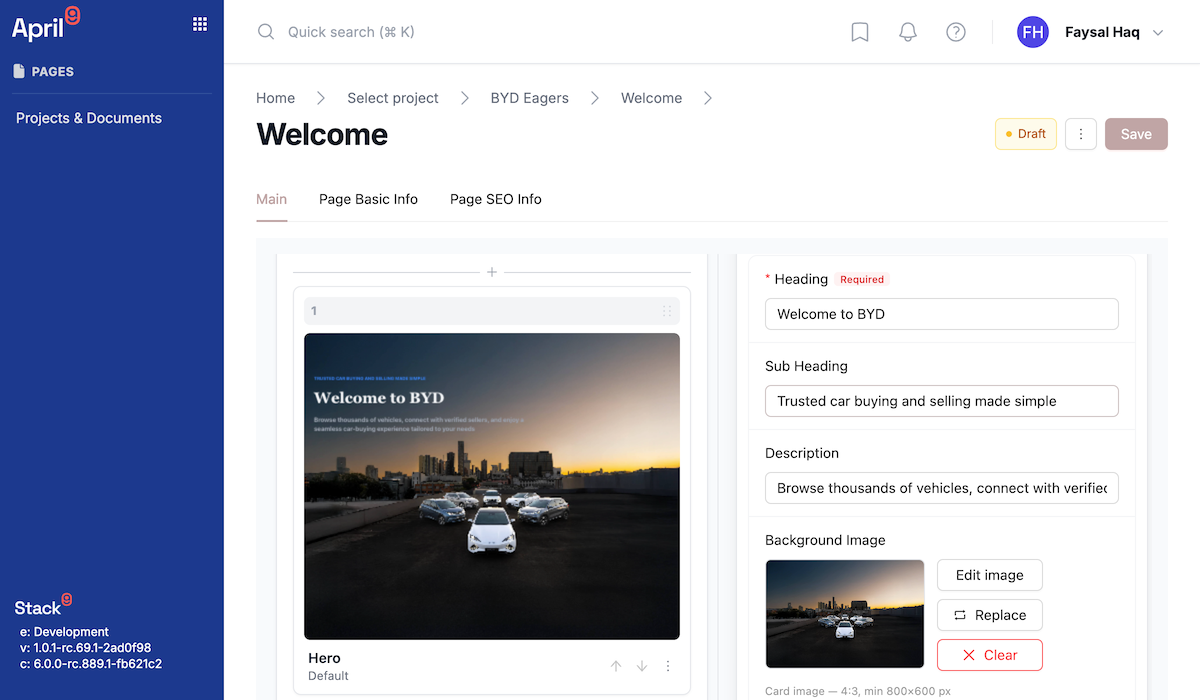

Open a document. The Slice sidebar shows live thumbnails, and the canvas shows the composed page.

What editors should know:

• No save required. Edits flow into the preview from the live form values, debounced, so previews track unsaved work.
• Undo and redo cover 50 steps across both field values and Slice composition.
• Thumbnails start static and go live. Out-of-viewport Slices show a stored screenshot; when a thumbnail warms up and reports readiness, it swaps to the live render, and reverts to the screenshot if it times out.
• Point-and-edit works both ways. Clicking a rendered element focuses the corresponding field, if your renderer posts FOCUS_FIELD.

Step 5: Share a tokenised snapshot

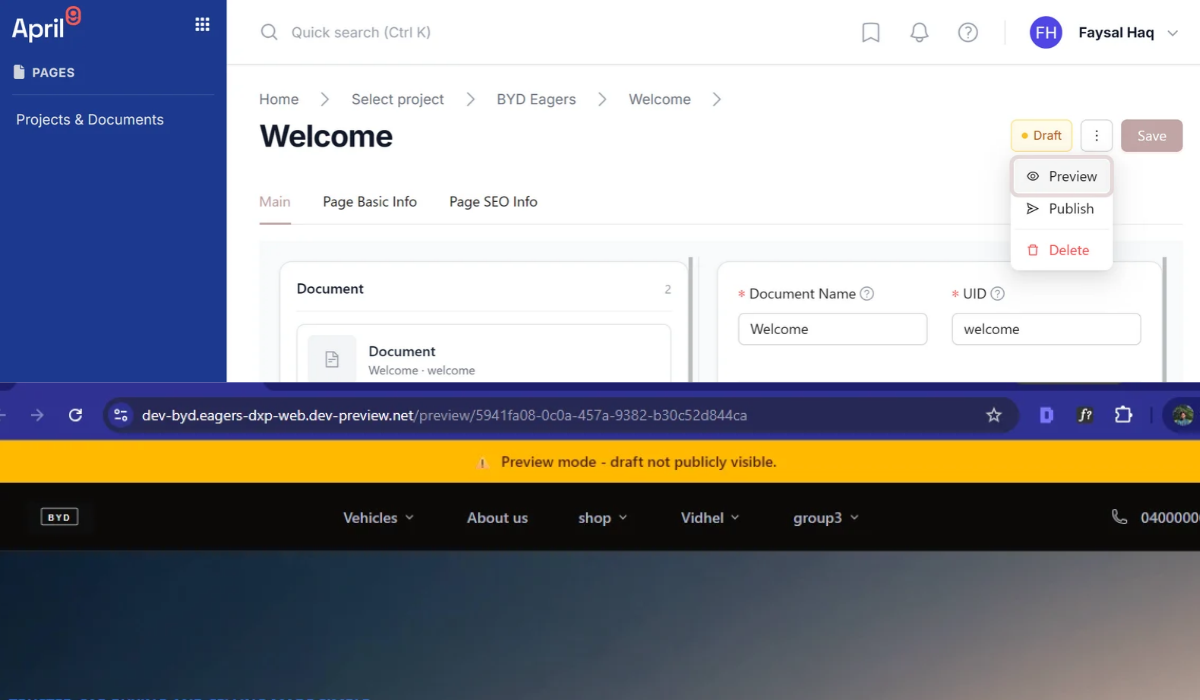

When an editor clicks Preview page, the CMS persists the current editor state — including unsaved edits — receives a token, and opens {previewDomain}/preview/{token} in a new tab.

The same flow over the API:

curl -X POST 'https://apis.app.stack9.co/api/pages/proj_7742/document/doc_5512/preview-snapshot' \
  -H 'X-API-Key: your-api-key-here' \
  -H 'Content-Type: application/json' \
  -d '{
    "snapshot": "{\"formValues\":{\"title\":\"Spring Campaign\"},\"slices\":[{\"id\":\"hero__8f21\",\"variation\":\"default\"}]}"
  }'

{ "token": "9f3c1a7e-2b40-4c8d-8f11-6a2e5d9c0b73" }

Then share https://www.northside.example.com/preview/9f3c1a7e-2b40-4c8d-8f11-6a2e5d9c0b73.

Each click produces a new snapshot and a new token. Snapshots are point-in-time: a reviewer opening yesterday's link sees yesterday's state, not the current draft. Send a fresh link after each round of changes.

Step 6: Prefer whole-page preview for composed pages

There are two live-preview shapes, and the difference matters at scale:

	Single-Slice frames	Whole-page preview
Frames	One iframe per Slice	One iframe for the page
Renderer instances	One per Slice	One module graph
Best for	Sidebar thumbnails, isolated Slice authoring	The composed canvas, theme work, inspect mode
Extra messages	—	SLICE_LIST, INSPECT_MODE, HIGHLIGHT_TOKENS in; ELEMENT_SELECTED, INSPECT_EXIT, WHEEL out

Handle SLICE_LIST in the same route as SLICE_DATA — as in Step 1 — and a single renderer instance serves both shapes. The payload nests as Page → Section → Block, matching the composition model.

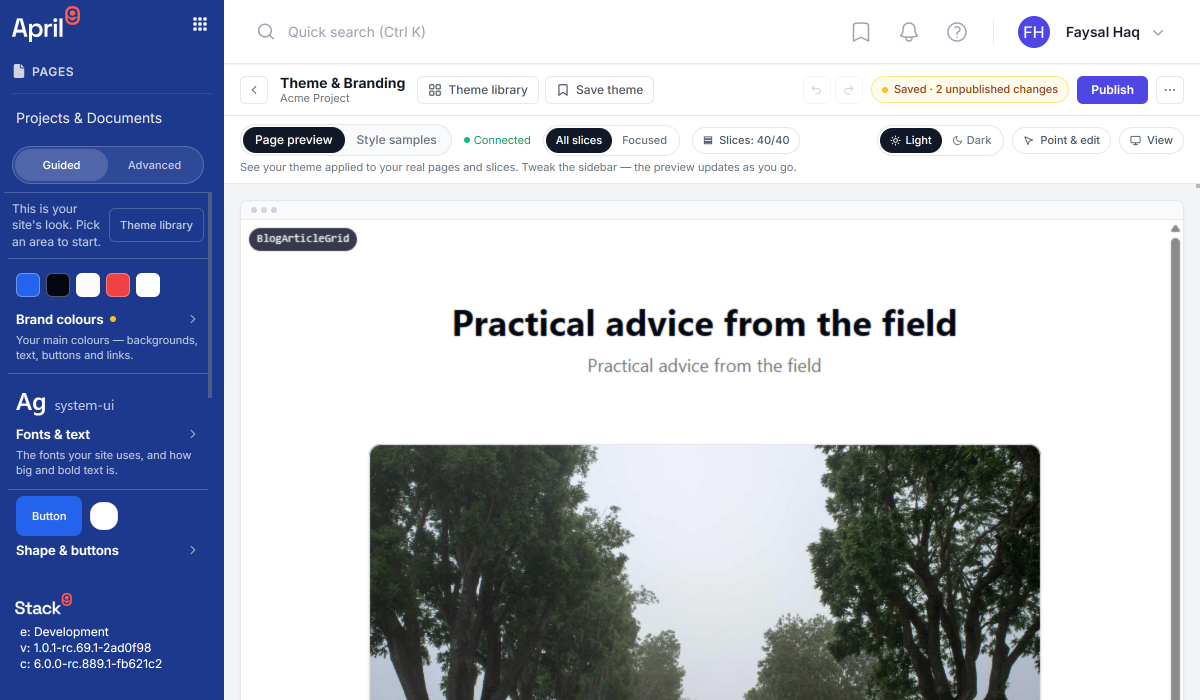

Theme work uses the same channel: THEME_VARS carries the token values and the light or dark flag, so the theme configurator's live page preview, device widths, and light/dark comparison all run through your renderer.

Troubleshooting

The preview pane shows "preview unavailable" or a static screenshot

Work outwards: is the Preview Domain set and correct; is the domain reachable from the browser (the CMS probes it before loading); does /slice-preview return 200; and does the route post READY? A missing READY message is the single most common cause — the CMS waits about 5 seconds, then falls back.

One Slice previews but others show screenshots

Those Slice types are not in availableSliceTypes. Add them to the array your route reports, and confirm the renderer really can render them — claiming a type you cannot render turns a clean fallback into a broken frame.

Thumbnails never go live

Thumbnails allow about 30 seconds for readiness before reverting to the stored screenshot. A renderer bundle that takes that long to boot is the usual cause. Check that the preview route is code-split away from your full site bundle.

Edits do not appear in the preview

Data is debounced, so allow a moment. If it still does not update, your route is probably not handling the message type being sent — log every inbound message once and confirm you handle both SLICE_DATA and SLICE_LIST.

Messages are ignored entirely

Your origin check is rejecting them. Log event.origin and compare it with the CMS origin, including protocol and port.

The frame renders but has no styling

THEME_VARS is not being applied. Confirm you spread the token values onto a wrapping element and honour the dark mode flag.

The snapshot link renders a blank page

Your /preview/{token} route fetched the snapshot but could not parse it. snapshot is an opaque JSON string — parse it, and do not assume a schema beyond what your renderer needs.

A reviewer says the snapshot is out of date

It is, by design. Snapshots are point-in-time. Generate a new link.

Images look different in preview versus published

Preview and publish share the same render path, so check the image data rather than the pipeline: crop, focal point, and aspect are stored per instance on the field value as normalised fractions, and replacing an image source clears those edits.

Roadmap in the image pipeline

Transformed image URLs are produced by an image proxy whose production URL signing is still on a hardening track, and the numeric File Revision used for cache-busting is not shipped. Verify what is live in your release before making performance claims or depending on a transformed-URL contract, and expect originals to be served as the fallback when the proxy is not configured.

Next steps

• Pages and Documents API — document, model, and Slice model contracts
• How to manage files with Documents Manager — where preview images come from
• How to set up Business Units — Core Slices versus Business Unit Forks, and previewing inside the Active Business Unit
• Content Management — how Pages fits the wider content model
